SHIPPING BY SEA freight FCL (full container levels) sizes and measurements of all Containers. We sell containers in Thailand, Singapore, China & NZ-------just ask us. We sell NEW & USED shipping containers:

FCL20'        & FCL40'



SEA FREIGHT: Shipping containers is either by 20ft FCl or 40ft FCL.

As at April 2017:

* Price excludes VAT7%
* Price valid for April 2017 & will vary
* Inspection is at our Laem Chabang yard

Used storage 20ft FCL container = THB45,000/Unit
eg. Delivery to Chiang Mai = THB29,000/Unit (Truck/Crane lift off to ground). Please note we do not have hydraulic lift trucks in Thailand so all containers need to be craned either end if wanting to buy a container internally. Its cheaper to get your own crane in your province



See the below stats.

Thailand directory and Thailands No1 original Trading Post









SHIPPING CONTAINERS SIZES AND TYPES

Dry containers come in several sizes 20-40ft or FCLs:

• 20' with a payload up to 28.3 metric tons
• 40' - both 8'6" and 9'6" high cube - with a payload up to 30.4 metric tons
• 45' - 9'6" high cube - with a total capacity of 86 cubic metres

20ft standard 20' x 8 x 8.6" Cubic Capacity 33.2m2  or 1172ft

Weight Max Payload Max Gross Weight Internal length Internal Width Internal Height
2300 kgs 28180 kgs 30480 kg 5898mm 2352mm 2393 mm
5070 lb 62130 lb 67200 lb 19'4" 7'9" 7'10"

40ft standard 40' x 8 x 8.6" Cubic Capacity 67.7m2  or 2390ft

Weight Max Payload Max Gross Weight Internal length Internal Width Internal Height
3750 kgs 28750 kgs 32500 kg 12032mm 2352mm 2393 mm
8265 lb 63385 lb 71650 lb 39'6" 7'9" 7'10"

40ft high cube 40' x 8 x 9.6" Cubic Capacity 76.4m2  or 2700ft

Weight Max Payload Max Gross Weight Internal length Internal Width Internal Height
3940 kgs 28560 kgs 32500 kg 12032mm 2352mm 2698 mm
8685 lb 62965 lb 71650 lb 39'6" 7'9" 8'10"



REEFER CONTAINERS: 20 & 40ft FCL

• Refrigerator container with a cargo temperature of -27 degrees C/ -15 degrees F & maintaining temperatures as low as -60 degrees C/ -76 degrees F
• Dehumidification system ensuring the optimal humidity inside the container
• Controlled atmosphere improving quality and shelf life
• Environmentally-friendly CFC free R-134A refrigerant
• Ideal for frsh and frozen vegetables, meat, shell fish etc

FLATRACKS & BULK CARRIER Many sizes 20-40ft

There are several options for oversized or especially heavy cargo like excavators and machinery etc.

20ft and 40ft flat racks have fixed or collapsible end-walls. They are suitable for top or side loading and ideal for heavy machinery, cranes, excavators, oil rigs, pipes, etc.

20ft and 40ft open-top containers, have removable roof bows and tarpaulin covers.
20ft open-top/open-side containers, have removable side grating, top rails, roof bows and door headers. These containers are designed for easy stuffing and stripping. They also allow good ventilation.

20ft and 40ft flat racks have fixed or collapsible end-walls. They are suitable for top or side loading and ideal for heavy machinery, cranes, excavators, oil rigs, pipes, etc.




Flat Rack Containers
Interior Dimensions
Tare Weight
Payload
20' Flat Rack Container
L: 5,935 mm
2,560 kg.
21,440 kg.
W: 2,398 mm
5,643 lbs.
47,265 lbs.
H: 2,327 mm
20' Collapsible Flat Rack Container
L: 5,966 mm
2,970 kg.
27,510 kg.
W: 2,418 mm
6,547 lbs.
60,647 lbs.
H: 2,286 mm
40' Flat Rack Container
L: 12,080 mm
5,480 kg.
25,00 kg.
W: 2,438 mm
12,080 lbs.
55,113 lbs.
H: 2,103 mm
40' Collapsible Flat Rack Container
L: 12,178 mm
5,200 kg.
39,800 kg.
W: 2,438 mm
11,463 lbs.
87,741 lbs.
H: 1,943 mm

When sending a shipment by sea we need to know the following information

What are you sending Destination port of entry
How many cbm (cubic metres)
Pickup or you deliver to us

SENDING GOODS OUT OF THAILAND:

When asking us for a quotation and you wish to send personal items please tell us exactly what you are shipping. Itemize all articles so we can tell you if you need fumigation, clearance from Customs and Fine Arts depts etc. We will not quote you if you do not list all items you wish to ship. Try to work out how many cubic metres you need to ship. Min 1cbm and this means 1m x1m x1m. LCL = MEANS LOWER THAN CONTAINER LEVELS. Over 1cbm the price gets cheaper so the more you do the cheaper it becomes.

BUDDHA HEADS OR STATUES:

Buddha heads are very sentitive for Thais to send so be aware as many shippers will not ship because one item may be a head that now needs to be cleared by the Dept of Fine Arst and the Customs. Many headaches shipping these now so we do not send relics even if copies. OUR COMPANY CAN SHIP BUDDHA HEADS OR MASKS OF ANY MAKE OR KIND THAT ARE BUDDHA COPIES ETC. BUT BE AWARE OF THE CUSTOMS CHARGES

Ocean Full Container Load Port To Port & LCL any quantity of goods.
Shipping Lines we select offer reliable sailing dates with just transit times at competitive rates.
Services include :
Scheduling appropriate sailing date
Seal container ready for ocean transportation
Prepare export declaration for our customer & arrange DHL direct to you.
Deliver container to port of exit
Container is Ocean freighted to destination port
In addition to all the cautious steps we take for your shipment, we also provide full coverage insurance from first rate companies if wanted.

We can book your container for a specific date
Complete packaging service & quality control
Wood crate items as well
Label and count number of pieces with invoices

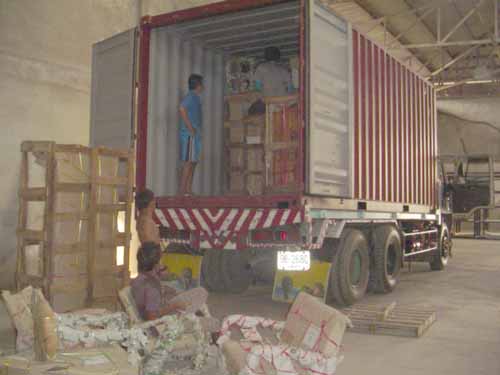

Load items into container securing for a secure anti-friction transit

Let us do the sourcing and buying for you.

We also oversee all garment exports and can supply DFT C/O for Germany

USED & NEW SHIPPING CONTAINERS FOR SALE

AT LAEM CHABANG PORT---40FT FCL (full container levels )

We sell shipping containers 10ft 20ft, 40FT & 45 ft FCLs [Full container levels ]

Thailand Bangkok. Cost of the container depends on condition and if they have CSC plates. Can arrange transport in thailand or ship to your country. These containers are excellent for exporters wishing to have their own container or for storage. The cost will depend on the condition with CSC plate or without. ---in various ports like China and Singapore for sale so please ask us
